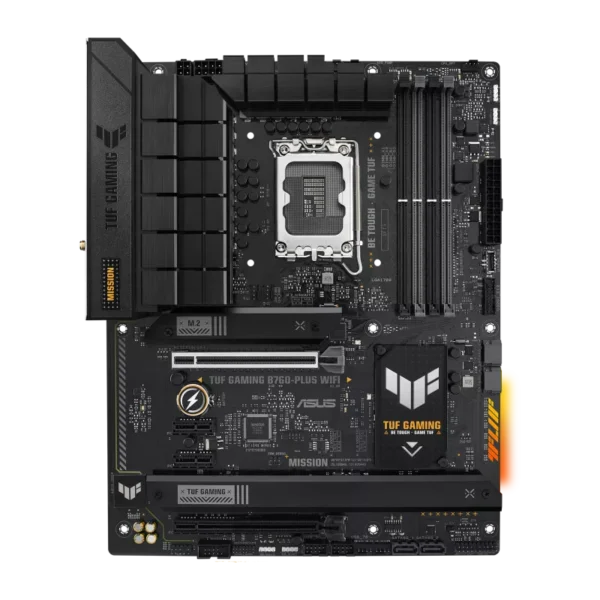

TUF GAMING B760-PLUS WIFI
TUF GAMING B760-PLUS WIFI ₨57,000.00
Click to enlarge

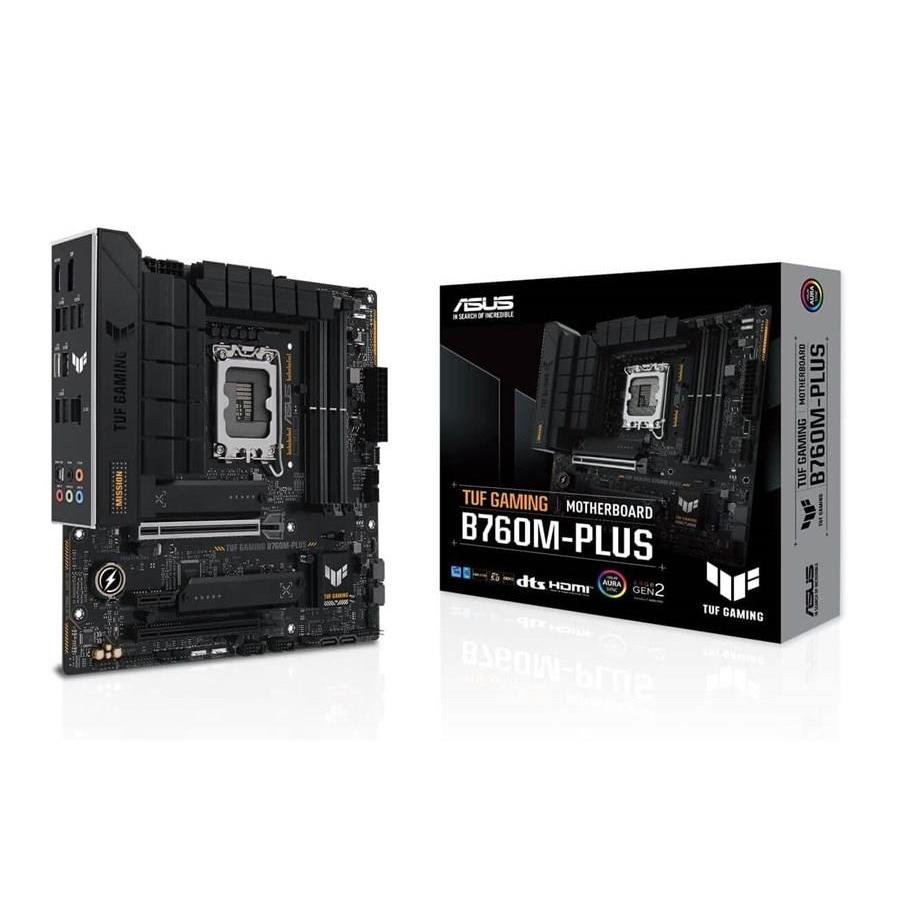

TUF GAMING B760M-PLUS

Overview

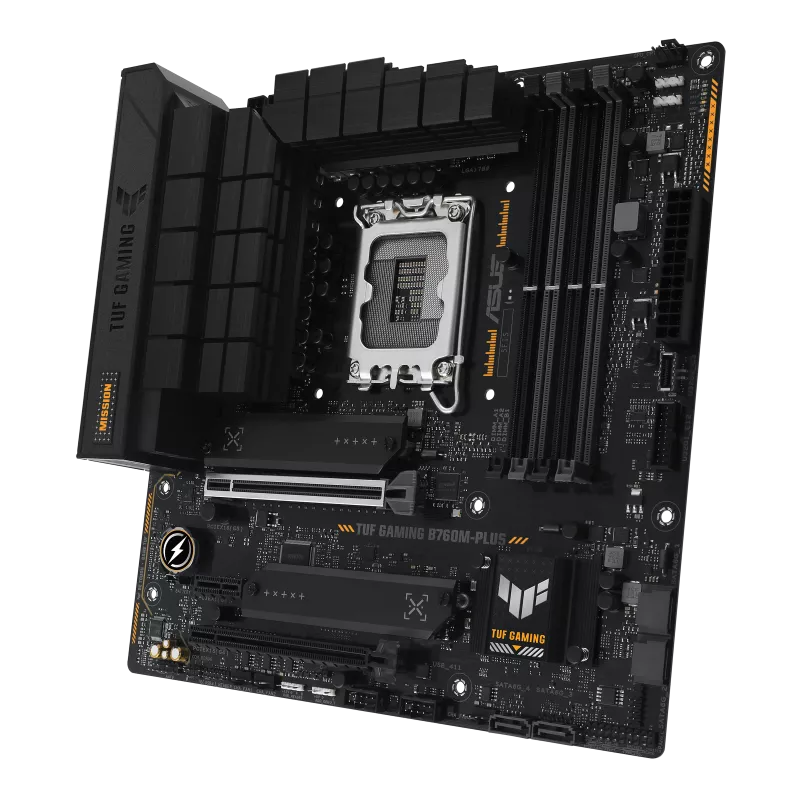

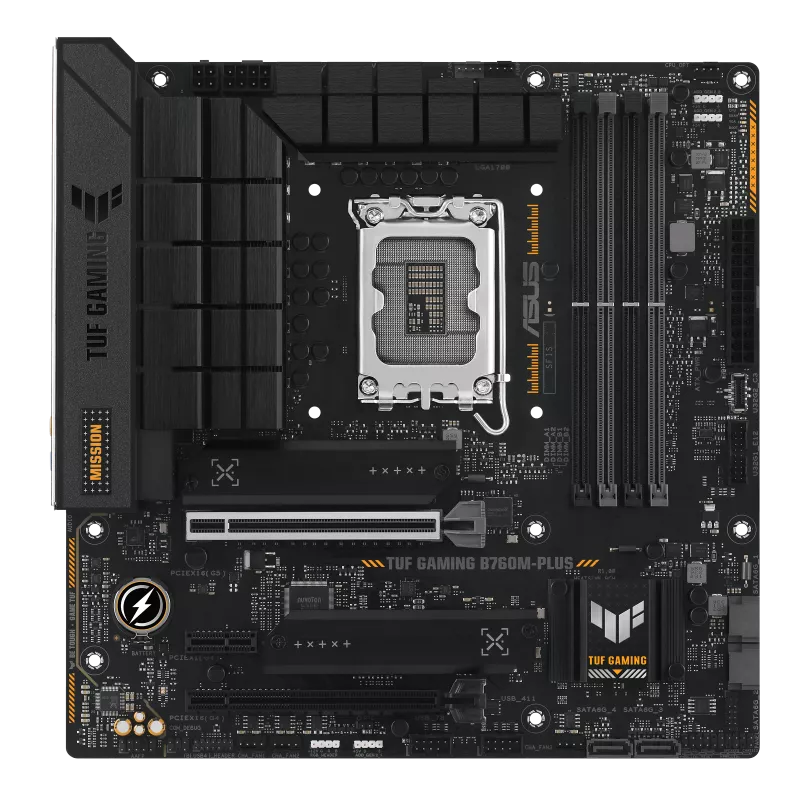

The ASUS TUF GAMING B760M-PLUS D4 is an Intel® B760 (LGA 1700) microATX motherboard designed for gaming enthusiasts. Let’s explore its key features:

  1. Socket Compatibility: The motherboard supports 13th and 12th Gen Intel® Core™ processors
  2. Power Delivery: It features a robust power solution with 12+1 DrMOS, a six-layer PCB, ProCool connectors, alloy chokes, and durable capacitors for stable power delivery
  3. Comprehensive Cooling: Equipped with a large VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
  4. Connectivity:
    • Ethernet: Realtek 2.5Gb Ethernet for high-speed networking
    • USB Ports: Multiple USB ports, including USB 3.2 Gen 2×2 Type-C, Front USB 3.2 Gen 1 Type-C, and Thunderboltâ„¢ (USB4®) support
    • Audio: Realtek 7.1-channel Audio CODEC with exclusive DTS Audio Processing, audio shielding, premium capacitors, and dedicated audio PCB layers
  5. Memory and Storage:
    • DDR4: Supports DDR4 memory
    • M.2 Slots: Two M.2 slots with PCIe 4.0 x4 support
    • SATA Ports: Four SATA 6Gb/s ports
  6. PCIe Slots:
    • 1 x PCIe 5.0 x16 (@CPU) with ASUS SafeSlot Core+
    • 1 x PCIe 4.0 x16 (max. @x4) (@PCH)
    • 1 x PCIe 4.0 x1
Model TUF GAMING B760M-PLUS D4
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Graphics 1 x DisplayPort**, 1 x HDMI® port***
Expansion Slots Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Ethernet 1 x Realtek 2.5Gb Ethernet, TUF LANGuard

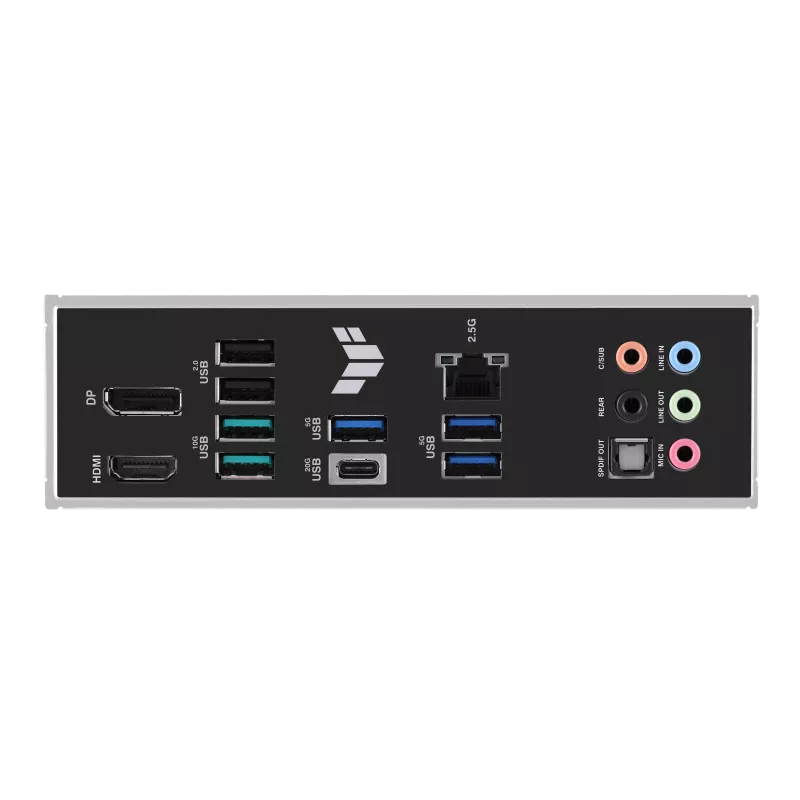

USB Rear USB: 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (4 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A); Front USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₨48,000.00

Compare
Add to wishlist
12 People watching this product now!
  • Warranty 1 year

More details

  • Free 30-Day returns

More details

  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Payment Methods:

Overview

The ASUS TUF GAMING B760M-PLUS D4 is an Intel® B760 (LGA 1700) microATX motherboard designed for gaming enthusiasts. Let’s explore its key features:

  1. Socket Compatibility: The motherboard supports 13th and 12th Gen Intel® Core™ processors
  2. Power Delivery: It features a robust power solution with 12+1 DrMOS, a six-layer PCB, ProCool connectors, alloy chokes, and durable capacitors for stable power delivery
  3. Comprehensive Cooling: Equipped with a large VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
  4. Connectivity:
    • Ethernet: Realtek 2.5Gb Ethernet for high-speed networking
    • USB Ports: Multiple USB ports, including USB 3.2 Gen 2×2 Type-C, Front USB 3.2 Gen 1 Type-C, and Thunderboltâ„¢ (USB4®) support
    • Audio: Realtek 7.1-channel Audio CODEC with exclusive DTS Audio Processing, audio shielding, premium capacitors, and dedicated audio PCB layers
  5. Memory and Storage:
    • DDR4: Supports DDR4 memory
    • M.2 Slots: Two M.2 slots with PCIe 4.0 x4 support
    • SATA Ports: Four SATA 6Gb/s ports
  6. PCIe Slots:
    • 1 x PCIe 5.0 x16 (@CPU) with ASUS SafeSlot Core+
    • 1 x PCIe 4.0 x16 (max. @x4) (@PCH)
    • 1 x PCIe 4.0 x1
Model TUF GAMING B760M-PLUS D4
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Chipset Intel® B760 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Graphics 1 x DisplayPort**, 1 x HDMI® port***
Expansion Slots Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Ethernet 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
USB Rear USB: 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (4 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A); Front USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

Overview

The ASUS PRIME H610M-K D4 is a micro-ATX motherboard designed for Intel® LGA 1700 processors. Let’s delve into its features:

Socket Compatibility: The motherboard supports 13th and 12th Gen Intel® Core™ processors with the LGA1700 socket.

Memory and Expansion Slots:

  • Dual Channel DDR4: It accommodates up to 32GB of DDR4 RAM running at 3200MHz.
  • PCIe Slots: Includes 1 x PCIe 4.0 x16 SafeSlot Core and 1 x PCIe 3.0 x1 for expansion cards.
  • M.2 Slot: Features a 32Gbps M.2 slot for high-speed storage.

Connectivity and Ports:

  • USB Ports: Equipped with USB 3.2 Gen 1 ports for fast data transfer.
  • Ethernet: Utilizes Realtek 1 Gb Ethernet for reliable network connectivity.
  • Video Outputs: Offers both HDMI® and D-Sub ports.
  • SATA Ports: Supports up to 4 x SATA 6Gb/s devices.
  • COM Header: Includes a COM header for legacy serial communication.
  • RGB Header: Allows customization with RGB lighting.

Cooling and Durability:

  • Comprehensive Cooling: Features hybrid fan headers configurable via Fan Xpert software or the UEFI BIOS.
  • 5X PROTECTION III: Provides multiple hardware safeguards for all-round protection.
  • Military-Grade Components: Ensures durability and stability.
  • Digi+ VRM: Enhances power delivery for optimal performance.

Audio Quality:

  • Onboard Audio: Combined features deliver elevated audio quality.
  • Intelligent Design: Premium hardware ensures exceptional sound.
